Replace rear tire Mi Electric Scooter (all models)

Let's take a look on how you can change the rear tire for your Mi Electric Scooter
Replace rear tire Mi Electric Scooter (all models)

Rear tire change on the Mi Electric Scooter is pretty straight forward, but can be difficult. It's recommended to have someone to assist you, but we'll look at a way to do it alone

The guide will assume you've already removed the wheel from the eScooter. We've guides on how to remove the wheel for Mi Electric Scooter (M365) and Mi Electric Scooter 3 / Pro 2 / 1S / Essential

Models covered:
- Mi Electric Scooter (all models)

Difficulty: Medium-Hard
Time: 15-30min

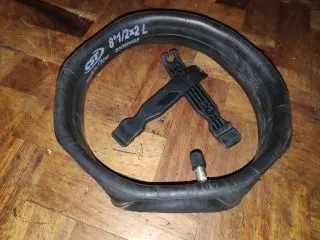

Tools needed

For this job, you'll need some tools

Tools:

  • 2 x Tire level
  • New tire / tire tube


Some prefer to use lube / grease as well, but this instruction will be without the use of it

Remove air from tire

First thing you want to do, is to remove as much air as possible from the tube. Here you can use a hex or other tool, that you can push the tire pin down with


The more air you get out, the easier it will be to remove the tire

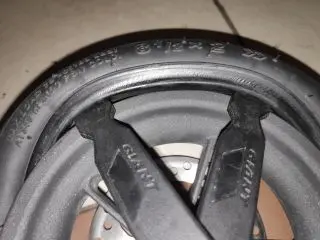

Removing tire

Now you'll get the tire level and insert it between the rim and tire. You insert first one and then about 10cm further on the tire, you'll insert one more. Then you'll slowly work around the tire, until you've gotten it off the rim


Half the tire of the rim is enough, if you'll only change tube

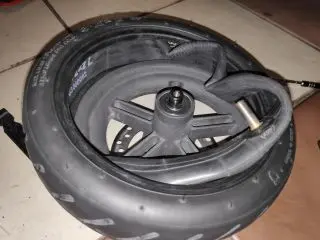

Removing tube

As I'm only changing the tube, I only removed the tire half way


Now I can pull out the tube and insert a new tube (remember to remove the lid for the valve)

Inserting new tube

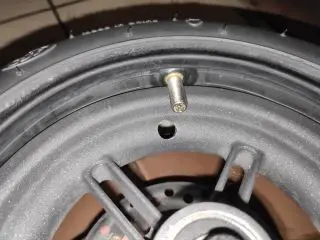

After inserting the new tube, make sure the valve is aligned with the wheel hole for the valve or you might end up having to remove the tire again (you don't want to do that


I recommend putting the valve through the valve whole in the wheel now and put the tire cap on. Then it will stay in place, while you put the tire on

Getting tire back on the rim

This is the most difficult part and this is where I recommend to be two people

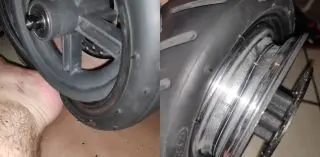

If you look at the wheel, you'll see it's curved inwards. So what you want to do, is get part of the tire onto the wheel. Then squeeze it together from the side, so it goes into the curve. As this will give you extra space to work with on the other side on the tire and every mm helps

As I replaced the tire alone, I used my feet to squeeze the tire at the bottom or you could have someone help you squeeze the tire or use clamps, just make sure they don't have sharp edges that can eat into the tire

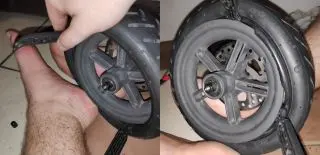

Work your way around the tire

Now that you've gotten the tire partially on, you use use the tire level to gradually work your way around the tire. Until you've gotten it completely on


I'll keep rotating the tire as we go along, so I can squeeze it with my feet into the curve and ensure it stays in the curve

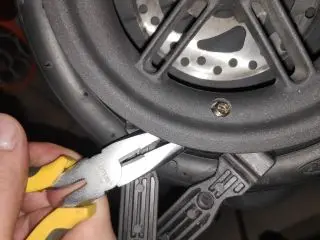

Get the valve through the valve wheel whole

If you didn't do it on the previous step, then you might be on this step for a while


I ended up getting plyers, so I could guide the valve enough through the whole so I could put on the tire cap

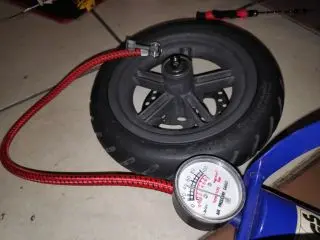

Make sure to refill the air

Now that the tire is back on, you need to ensure the air is filled up


Air pressure will depend on your weight, climate, model and if it's front or rear tire. Please reference your manual or local seller for recommended air pressure
