Replace rear wheel Mi Electric Scooter (M365)

Tomas Lyngen

Published: 05 May 2021

Let's take a look on how you can replace the rear wheel on the Mi Electric Scooter (M365)

Wheel change on the Mi Electric Scooter (M365) is pretty straight forward, but you'll need some tools and patient

This guide will look into how to remove the wheel from the Mi Electric Scooter (M365), but not on changing the tire. We also have an guide on replacing tire here

Difficulty: Medium
Time: 30min

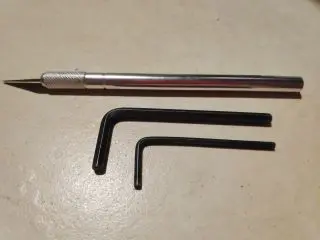

Equipment needed

To change the wheel, a few tools will be needed

Tools:
- Allen/Hex key 2
- Allen/Hex key 4
- Small knife

Remove reflectors

When you've ensured you've required tools, you can place the bike on top of a chair or table. Just remember it will be front heavy later, when you remove the rear wheel. So ensure it's stable

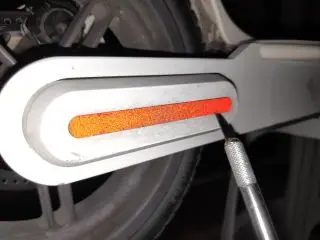

Start by removing the reflectore. Feel with your finger to find the hole for screw and use a small knife to slide in between the reflector and the reflector holder. Then gently peel it off

Lay the sticker with the glue facing up and avoid touching the glue side as much as possible

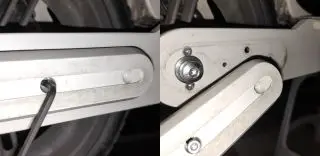

Remove the reflector holder

After the reflector is removed, you can remove the two hex screws and the reflector holder will come off

I normally put all the screws belonging to one side, inside the holder of the side to keep track of them

Remove the screw for tire axis

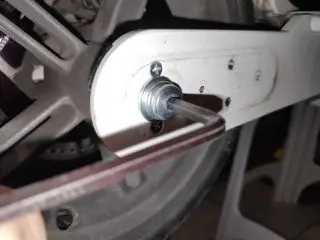

Now that the reflector holder is off, you'll have access to the screw for the tire axis

After it's removed, you can do the same steps on the other side and the tire should be loose

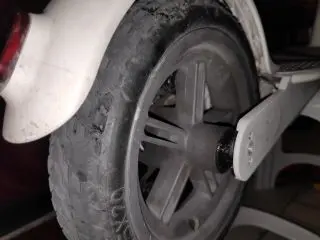

Remove wheel

Then you can slide out the wheel, straight backwards. Do notice that the sides of the wheel rim, connecting the bike and the wheel. Are not completely round, but are flat on two sides. These needs to align, later when you put the a wheel back onto the eScooter
