What's inside Digital Multimeter DT83B? #Teardown

Teardown of a multimeter
What's inside Digital Multimeter DT83B? #Teardown

If you haven't used one, you most likely seen a multimeter. It's a tool to measure electricity and can be used to test if current is going from A to B, plus more

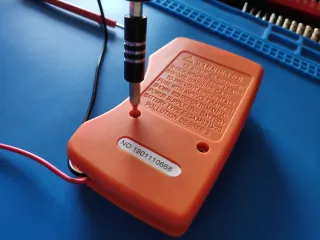

For this model, we start by removing the two screws in the back

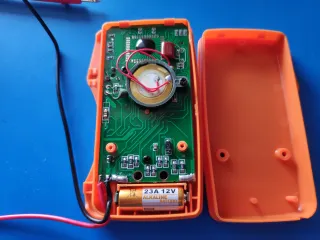

After pulling of the back lid, we now see the motherboard and the battery

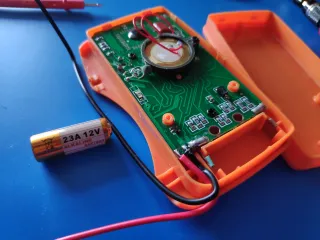

Now you can either change the battery (23A 12V for this model) or remove it, if you plan to take it further apart

// Warning //
We don't recommend taking it further apart, unless you know what you are doing

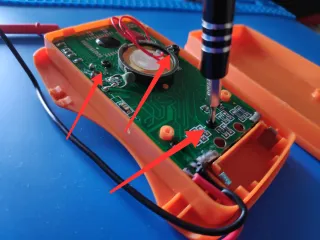

Remove three screws and you can gently pull out the motherboard

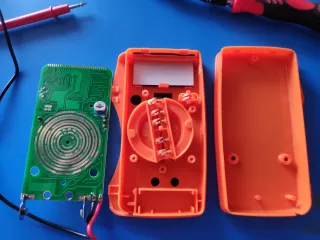

Now that the motherboard is out, we can see all the parts
